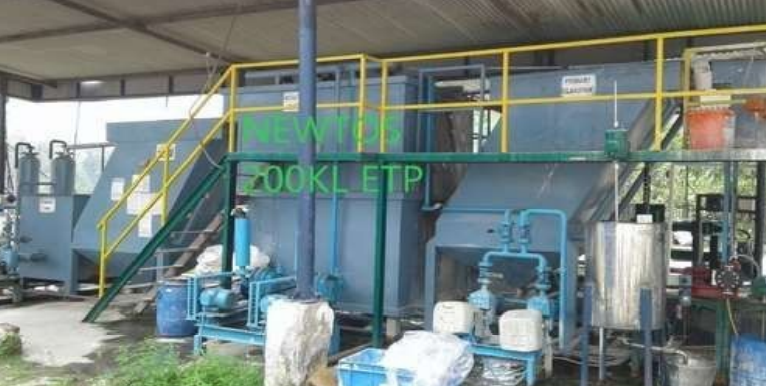

EFFLUENT TREATMENT PLANT

We are leading names in the field of offering highly functional range of Effluent Treatment Plants. Here, other than offering plants, our expertise also lies in offering customers' on-site support as well as training programs for their convenience.

These effluent treatment plants are used for purifying waste material that is an industrial waste. These treatment plants help in solving environmental pollution issues without exposing same to open environment. These effluent treatment plants are known for saving energy and removing pollution effluent with economical operations and also meet stringent pollution control norms. These effluent treatment plants can treat effluent coming from different areas of plant

Upflow anaerobic sludge blanket (UASB)

Upflow anaerobic sludge blanket (UASB) technology, normally referred to as UASB reactor, is a form of anaerobic digester that is used for wastewater treatment.

UASB uses an anaerobic process whilst forming a blanket of granular sludge which suspends in the tank. Wastewater flows upwards through the blanket and is processed (degraded) by the anaerobic microorganisms. The upward flow combined with the settling action of gravity suspends the blanket with the aid of flocculants.

Biogas with a high concentration of methane is produced as a by-product, and this may be captured and used as an energy source, to generate electricity for export and to cover its own running power

Advantages of UASB:

• Production of valuable methane gas which can be used for electricity generation or as biofuel.
• Low energy / power consumption and lower footprint requirement.
• Low skill requirement for operation / supervision.
• Less sludge production.
• Production of highly stabilized sludge which can be used as manure.

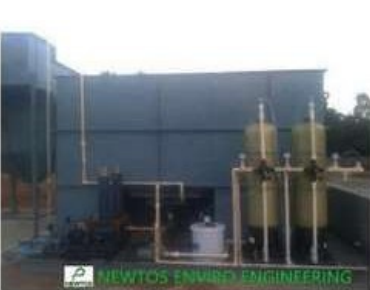

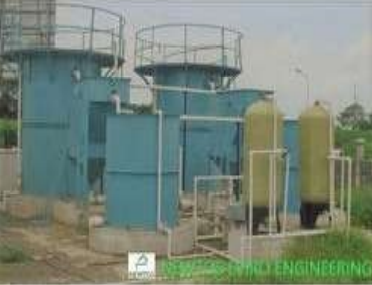

SEWAGE TREATMENT PLANT

We are leading names in the field of offering Sewage Treatment Plants that are precision designed to receive waste from industrial sources and effectively remove materials damaging water quality and can harm health of the humans consuming it

MGF AND ACF

Multigrade Filter (MGF) is a depth filter that makes use of coarse and fine media mixed together in a fixed proportion. This arrangement produces a filter bed with adequate pore dimensions for retaining both large and small suspended particles. Multi Grade Filters (MGF) are used in water treatment and waste water treatment to remove suspended solids, dust and dirt present in the water.

An activated carbon filter (ACF) works on the principle of adsorption; filter medium adsorbs or reacts with a pollutant molecules then filtered water is drained out. Activated carbon which is used as medium to remove contaminants is natural material derived from coconut shell, lignite, bituminous coal etc.

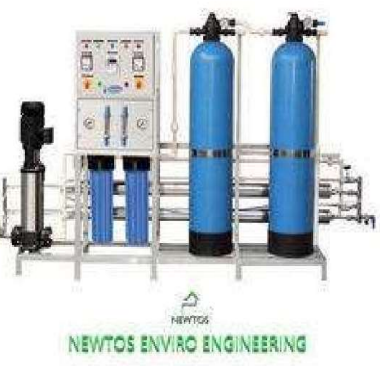

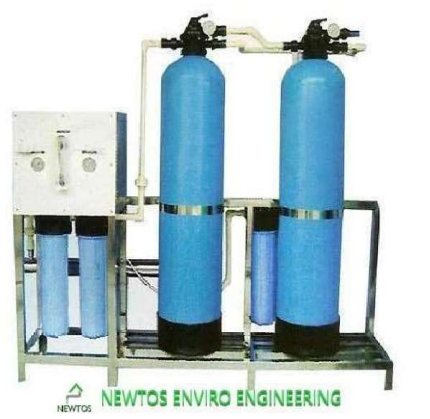

RO Plant

We offer a wide range treatment plants, Mineral RO water purifiers, UF technology water purifiers. We supply Industrial and Sea Water Desalination Membrane. We supply Hydranautics, Dow, Filtech, Toray etc.

Features:

• RO Membrane for RO Plant
• RO Plant and R.O. Membranes is extensively used in standard Custom system applications across Reverse osmosis system

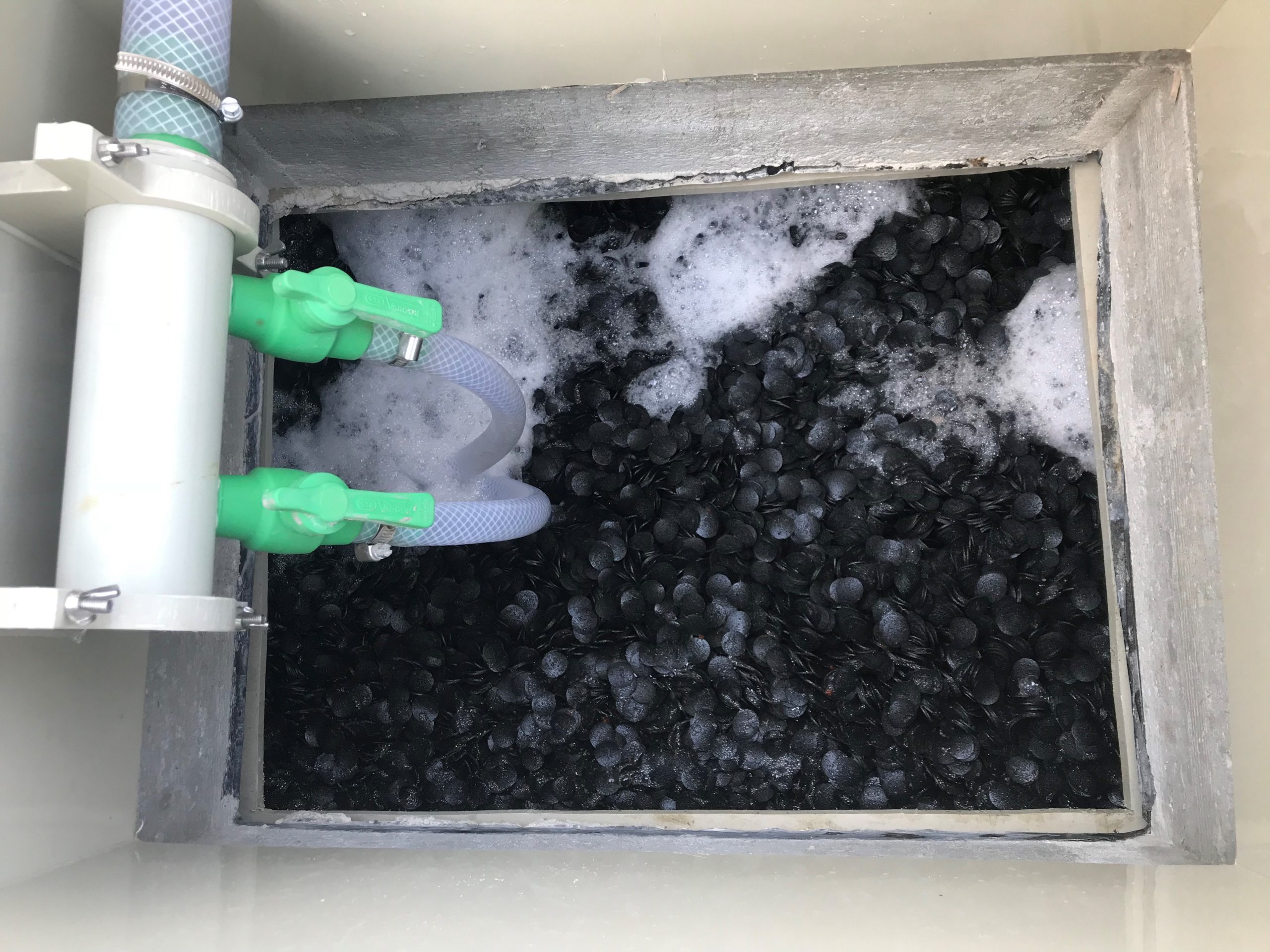

MBBR

In MBBR Technology, the biomass spontaneously gets fixed to the Bio Media and helps Microbes to grow and multiply there. This is among the most effective bio-reactors used in wastewater treatment. The large bio film-liquid interfacial area, high interfacial velocities and good mass transfer characteristics are the main features of this type of reactors. The superior performance of the MBBR stems from the very high biomass concentration (30-40 kg/m3) that is achieved due to immobilization of cells onto and /or into the solid particles.

Features of MBBR Technology :

• Best present available and economical technology for Effluent treatment.
• Self regulating biomass development and biomass holding process capability.
• No operational adjustments required.
• Sludge recirculation.
• Triple pass treatment.
• Lower footprints than any other technology.
• Stable under high organic loading.
• Low mechanical equipment maintenance.
• Low noise level (for containerized systems).
• No odour in surrounding environment.
• Stable nutrients removal
• Biomass of more than 15000 to 20000 mg/m3 available for efficient treatment. Thus ensuring Nitrogen and phosphorus removals
• No media replacement.
• Easy shipments in standard 20' and 40' container.
• No separate plant room required since all equipment enclosed in container.
• No equipment protection shed required since all equipment are enclosed in container
• Plant is coated both internally and externally with best suitable Anti-Corrosive paints/FRP

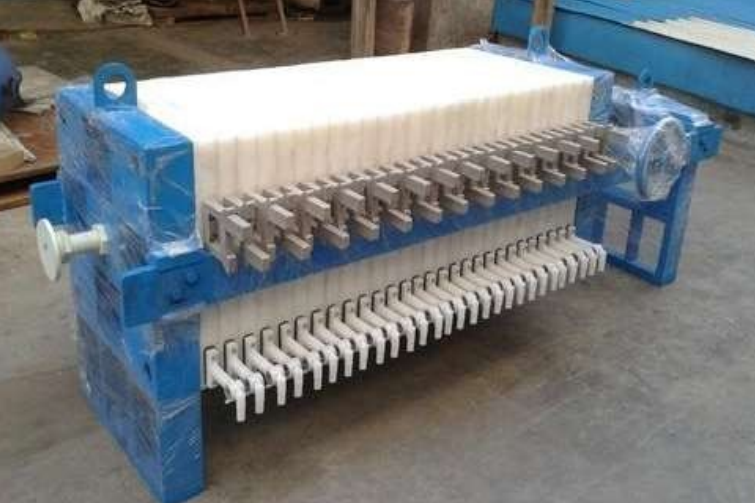

FILTER PRESS

A filter press is an Operation, fixed volume machine that separates liquids and solids using pressure filtration. A slurry is pumped into the filter press and dewatered under pressure.
